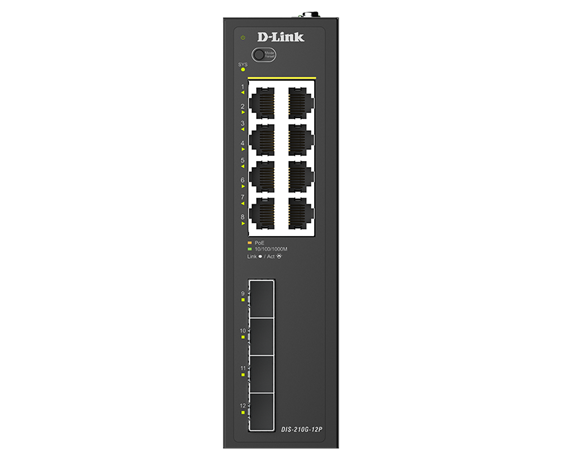

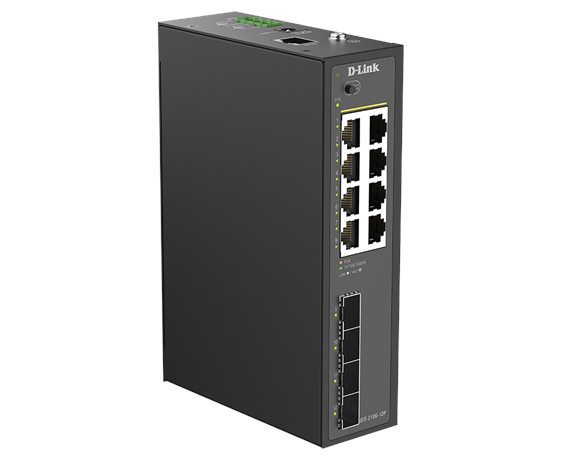

DIS-210G-12P
8 Ports 1G PoE+ + 4 Ports 1G SFP Industrial Smart Switch, 240W
The DIS-210G-12P Series Layer 2 Gigabit Industrial Smart Managed Switches are equipped with 8x 10/100/1000BASE-T PoE ports, and 4 SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments.
– 8x 10/100BASE-T PoE Ports
– 4x SFP Ports
– Switch Capacity: 24 Gbps
– PoE budget: 240W
– PoE standards: IEEE 802.3af/at/bt
– Fanless, passive cooling design
– Industrial grade operating temperature (-40~75°C)
– High EMS endurance
– Durable IP40-rated housing
– Built-in 6 KV surge protection on copper ports
Robust Design
High EMC endurance, fanless design, and a wide operating temperature range combined with IP40 housing to withstand harsh operating environments.
Flexible Deployment
Small form factor design that supports multiple mounting types and PoE support to extend the deployment range of PoE-powered
devices.
Powerful Management
Features a variety of flexible management options including a web-based UI, industry standard CLI, SNMP, and a dedicated RJ-45
console port
Durable, Reliable, and Efficient
The DIS-210G-12P is housed in a highly resistant IP40-rated metal casing to protect the switches from harsh environmental conditions. High electromagnetic susceptibility (EMS) protects the DIS-210G-12P from undesirable effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-210G-12P while also enabling operation in a wide temperature range from -20 °C up to 75 °C.
High Redundancy and Reliability

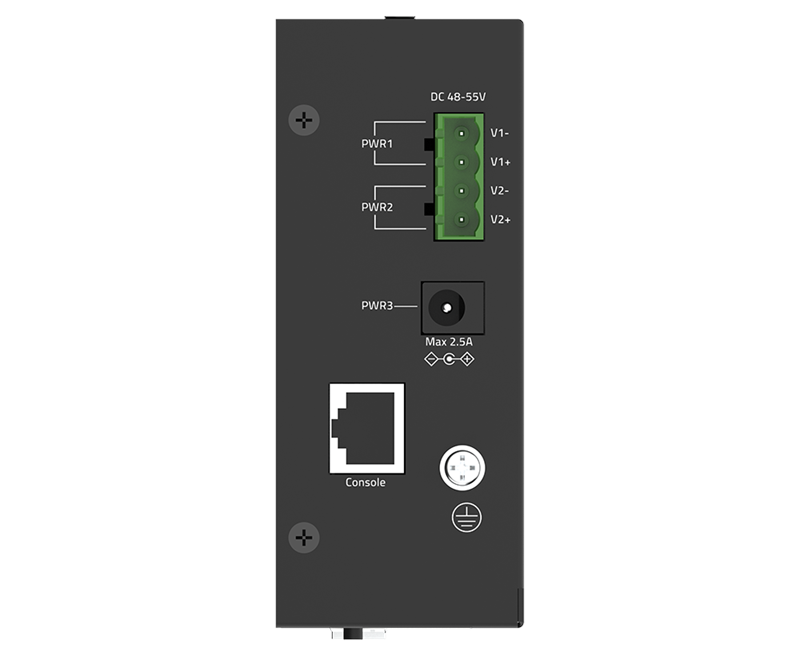

The DIS-210G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.
Easy Troubleshooting
The DIS-210G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors
Power over Ethernet Support
The DIS-210G-12P is a PoE-ready switch with a total PoE budget of 240 W, and capable of supplying up to 30 W of power per port on ports 1-6 and 60 W of power per port on ports 7-8. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE devices to be installed in remote locations.
